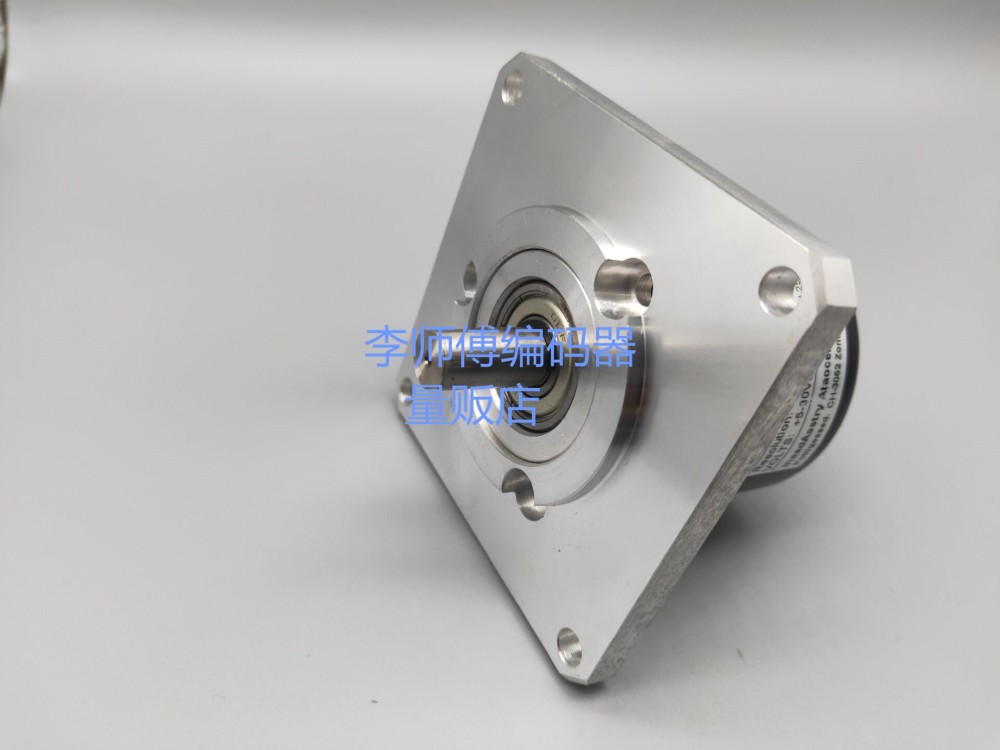

HPN-6C-100-3-SA20-CH001Encoder with New Technology
Export ABZ. The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
Parameters: Optional number of pulses, DC5V-30V power supply, maximum mechanical speed 12000 rpm, response frequency: 0-300KHz, consumption current: <100MA.
Output: Output circuit has NPN (PNP) collector open circuit output type voltage type, complementary type, long-line drive type (RS422), general type.
Uses: Textile, Metering, CNC Machine Tool, Elevator, Door Machine,
HPN-6C-100-3-SA20-CH001 New modelEncoder of Technology
- outputABZ。 The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
Parameters: The number of pulses is optional.DC5V-30VPower supply, maximum mechanical speed 12000 rpm, response frequency: 0-300KHz, consumption current: <100MA.
Output:The output circuit hasNPN(PNP) collector open-circuit output typevoltage type,complementary type and long-line drive type（RS422)General type
Uses: Textile, Metering, CNC Machine Tool, Elevator, Door Machine,
