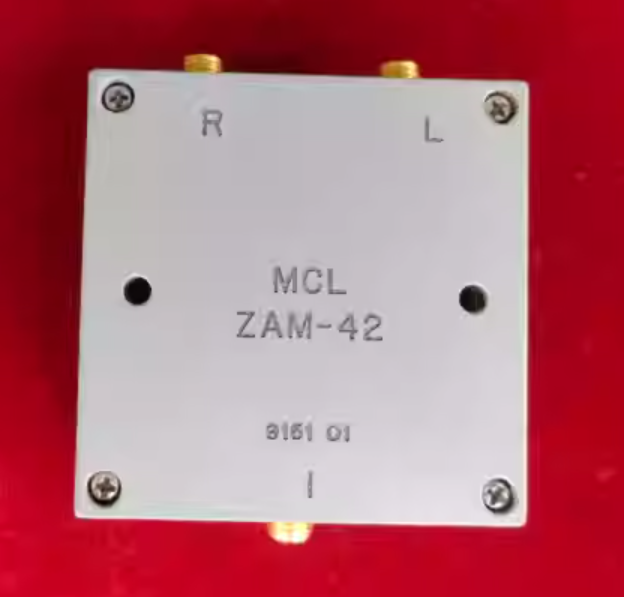

Mini-Circuits ZAM-42: 1.5-4.2GHz SMA RF Coaxial Mixer

Overview

The Mini-Circuits ZAM-42 is a high-performance RF coaxial mixer designed for critical signal processing applications within the 1.5 to 4.2 GHz frequency range. Engineered to deliver superior conversion efficiency and signal integrity, this mixer leverages Mini-Circuits' advanced design expertise to meet the demanding requirements of modern communication, test, and measurement systems.

Key Features

• Broad Operational Bandwidth: Seamlessly covers the 1.5–4.2 GHz spectrum, making it ideal for multi-band applications such as 5G NR, Wi-Fi 6/6E, and satellite communications.
• Robust SMA Connectivity: Features SMA connectors for reliable, low-loss RF interfacing, ensuring consistent performance in high-vibration environments.
• High Linearity & Low Noise: Optimized for minimal conversion loss (typically 6.5 dB) and excellent noise figure, preserving signal quality in up/down-conversion chains.
• LO Drive Flexibility: Operates efficiently with a +13 dBm LO drive level, simplifying system design and reducing power consumption.
• Superior Isolation: Achieves high port-to-port isolation (e.g., LO-to-RF: 30 dB min), minimizing signal leakage and cross-talk for enhanced system stability.

Performance Specifications

• Frequency Range: RF/IF: 1.5–4.2 GHz; LO: 1.5–4.2 GHz
• Conversion Loss: 6.5 dB (typical)
• LO Drive Level: +13 dBm
• Noise Figure: 6.5 dB (typical)
• Input IP3: +21 dBm (typical)
• Port Isolation: LO-RF ≥ 30 dB, LO-IF ≥ 20 dB (typical)
• Operating Temperature: -40°C to +85°C

Applications

• Software-defined radios (SDR) and radar systems
• Cellular infrastructure and base stations
• RF test equipment and spectrum analyzers
• Microwave backhaul and point-to-point links

Why Choose ZAM-42?

Mini-Circuits' ZAM-42 combines precision engineering with rigorous quality control, offering repeatable performance across temperature and frequency variations. Its compact, surface-mountable package (ROHS compliant) ensures easy integration into dense PCB layouts, while industry-standard SMA connectors guarantee compatibility with existing RF assemblies.

Elevate your RF system performance — integrate the ZAM-42 mixer for uncompromised signal conversion accuracy and reliability.
