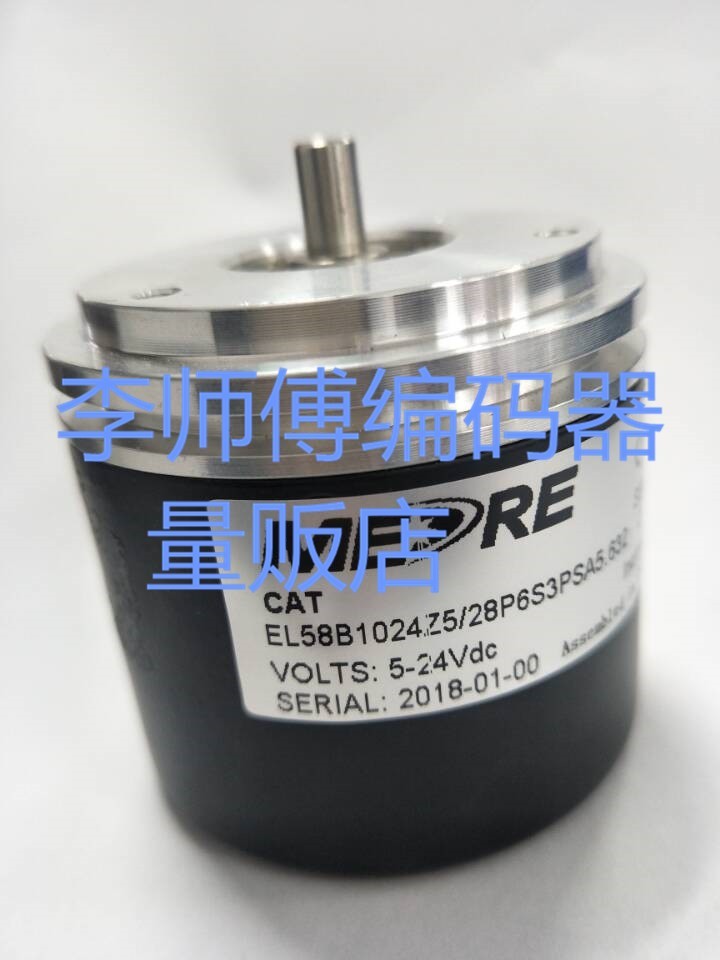

EL58B10Two4Z5/28P6S3PSA5.632New modelItalytechnologyOfEncoder
outputABZ. The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
axis/holePath:4-5-6-8- 10-11-12 mm
The synchronous flange of the encoder body is fixed.
pulse2-Fifty00Signal output:TLLandHTLoutput
Voltage:DC5V-30V;
Parameters: The number of pulses is optional.DC5V-30V power supply, maximum mechanical speed 12000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Output:The output circuit hasNPN(PNP collector open-circuit output typevoltage type,complementary type and long-line drive type（RS422)General type
Purpose:Servo Motor, CNC Machine Tool, Elevator, Door Machine
