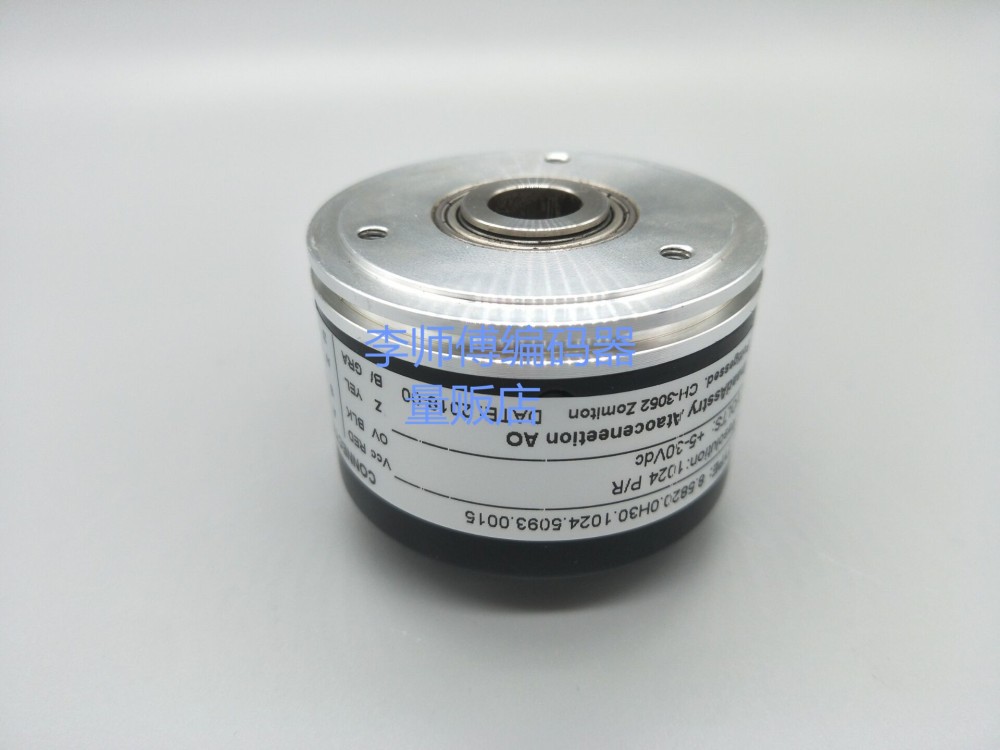

8.5820.0H30.1024.5093.0015whole Xin LiTechnologicalEncoder
outputABZThe counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
axis/aperture08-10-12-14-15-20-25-30-35-50-42-45MM
Parameters: Pulse number 2cpr-5000cpr is optional,Working voltage DC5V-30V power supply, maximum mechanical speed 5000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment
