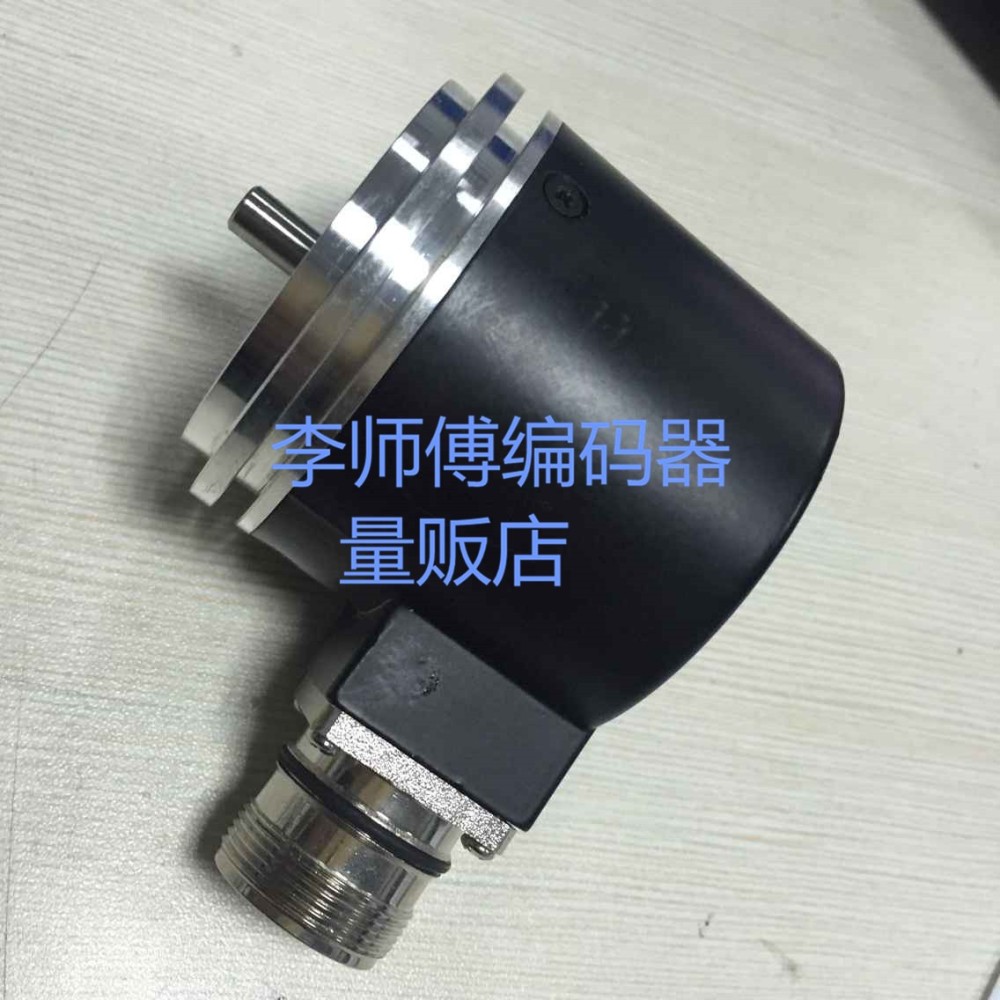

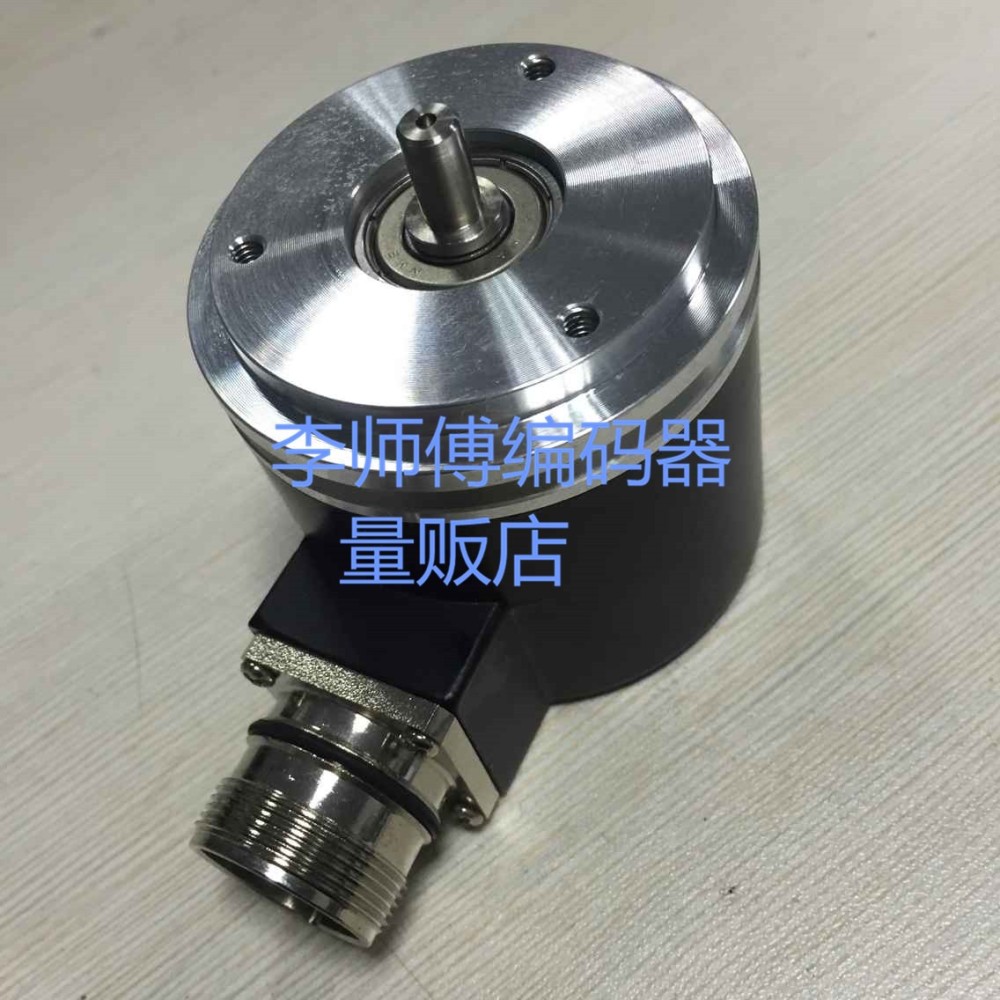

RI58-O/1024ES.41IH-S (0 524 799) New German Technical Encoder
outputABZ。 The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
axis/Aperture:5-6-6.35-8-9.525-10-12mm
pulse2-5000Signal output:TLLandHTLoutputRS422
Parameters: The number of pulses is optional.DC5V-30VPower supply, maximum mechanical speed 12000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Output:The output circuit hasNPN(PNP) collector open-circuit output typevoltage type,complementary type and long-line drive type（RS422)General type
Purpose:Servo Motor, CNC Machine Tool, Elevator, Door Machine
