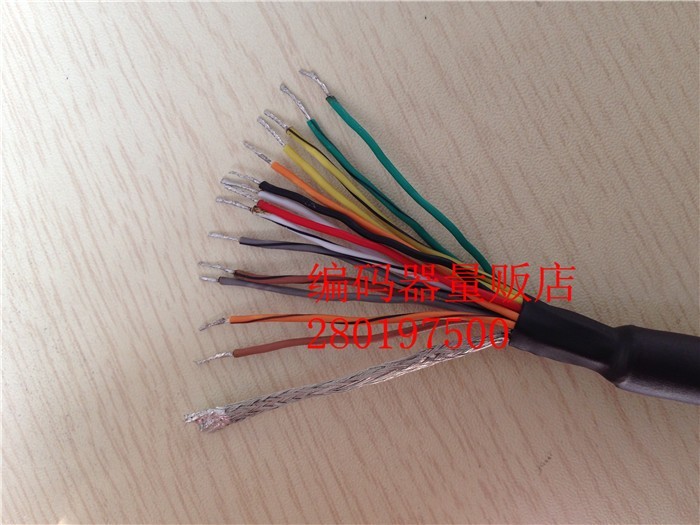

Name:TS5214N530(OIH48-2500P8-L6-5V) TAMAGAWA, JapanServo motor encoder is a complete substitute. outputABZFourteen signal lines with six phases of UVW are used to generate counting pulse signals with identifiable direction by rotating grating disc and optocoupler.
Parameters: The number of pulses is optional.DC5VPower supply, maximum mechanical speed 20000 rpm, response frequency: 0-300KHz, consumption current: <150MA.

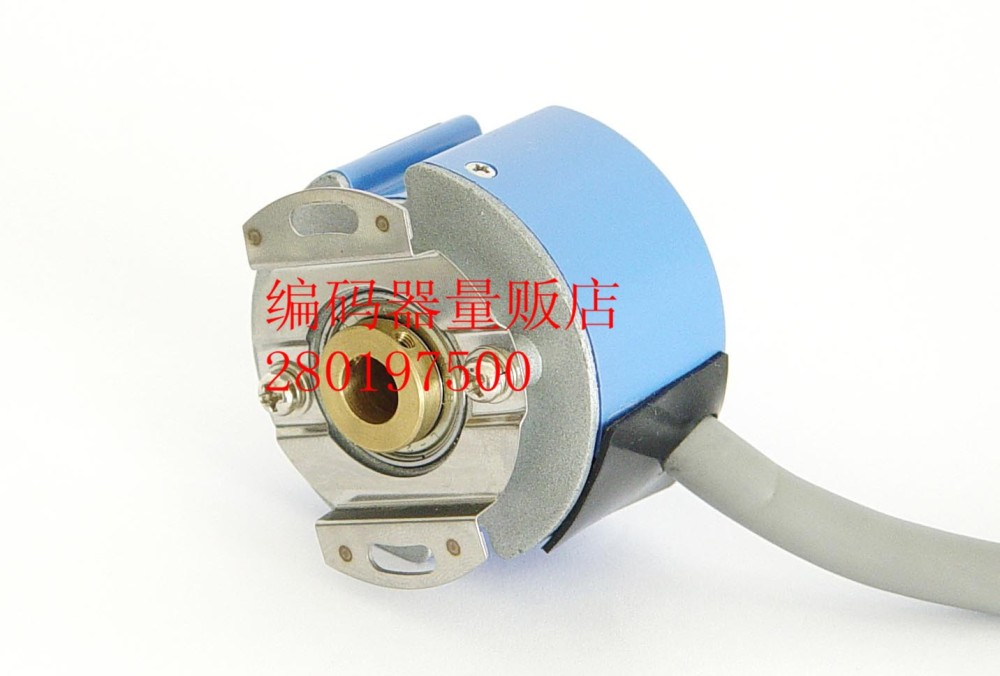

Size:Encoder body size: 48mm; shaft diameter 8, fixed holes: 2-M3 screw holes PCD40, 46, 55
Output:The output circuit hasNPN(PNP) collector open-circuit output typevoltage type,complementary type and long-line drive type（RS422)(Note: There is no voltage output when the collector is not connected with pull-up resistance)
Purpose:Servo Motor, Servo Motor, CNC Machine Tool
